ARB Air Locker Differential for 2nd Gen Toyota 4Runner

Toyota 4Runner - 1990 to 1995 - All [Limited, SR5 2.4L 4WD, SR5 3.0L 4WD] (Rear) (8in Ring Gear) (30 Spline) (Requires Upgraded Carrier Bearing)
More / Larger Pics (1)
In Stock
Fits:
Toyota 4Runner - 1990 to 1995 - All Door Configs [Limited, SR5 2.4L 4WD, SR5 3.0L 4WD]
Notes:
  • Rear
  • 8in Ring Gear
  • 30 Spline
  • Requires Upgraded Carrier Bearing
More Info:
IMPORTANT: Requires upgraded 50mm carrier bearing. Rear air lock differential. Only for 8in ring gear with 30 spline shaft. Includes required shims to adjust the diff during installation, solenoid, and lines.
List Price:
$1200.10
Our Price:
$1091.00
You Save:
$109.10


1-4 DAY FAST FREE SHIPPING!
(free to mainland U.S. only)
Select an Application For Your
2nd Gen Toyota 4Runner

Year Range
Door Config  [Trim Level]
Application / Notes
1990 to 1995
All [Limited, SR5 2.4L 4WD, SR5 3.0L 4WD]
(Rear) (8in Ring Gear) (30 Spline) (Requires Upgraded Carrier Bearing)


Sold as front or rear kits. ARB AIR LOCKER DIFFERENTIALS REQUIRE AN AIR COMPRESSOR, WHICH IS NOT INCLUDED. We separately sell ARB air compressors for use with these differentials, or you can use your own.

Traction is very important when off-roading, arguably more so than on the road. However, even with 4WD, it might not be enough to get you out of certain situations. Though many 4WD differentials already include some sort of LSD (Limited Slip Differential) system, a little extra can go a long way in getting you where you want to be. A locking differential prevents ANY slippage between the wheels and locks them to rotate exactly the same. This can go a long way in increasing traction and providing maximum torque to the wheels. The locking of the wheels can also be critical to allowing your Toyota 4Runner to overcome certain obstacles or get out of difficult off-road situations.

An ARB Air Locker Differential for your Toyota 4Runner provides a convenient and easy way to lock your front and/or rear wheels without having to get out of the vehicle. Unlike older systems, where the lock has to manually be set on the diff itself, these new air locking diffs can be set from the cabin with the flip of a switch! In addition, the lock mechanism has a robust build design that allows it to be actuated at any speed. By using a clutch style pneumatically actuated side gear, it locks the spider gears from moving and creating a strong lock between both wheels. The internal gears are forged, ensuring they can handle the most demanding environments as well. An air locking differential is a must for those doing tough off-road experiences!

Key Features:
  • Locks front and/or rear wheels completely - no slippage. You get 100% traction.
  • Air actuated system. Locking can be set from the cabin with the flip of a switch.
  • Robust build design, including forged gears for added strength.
  • Steel reinforced, elastomer bonded annular seal designed to handle the most extreme temperatures on Earth!
  • Clutch style locking mechanism on side gear provides a strong lock and can be actuated at any speed! Locks super fast as well.

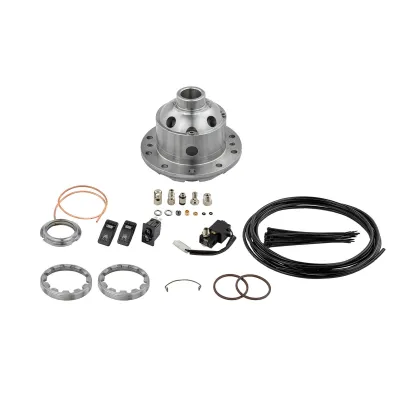

  • Includes differential, activation switch, solenoid valve, air line, and bulkhead fitting. Some kits include shims as well.
  • Allows your Toyota 4Runner to overcome tough obstacles and get out of difficult off-road situations.
  • 5 year Limited Warranty.
Fitment Notes: Each ARB Air Locker Differential kit is specific to certain factory differential setups. Please read all notes and check your factory differential to ensure it will fit your Toyota 4Runner.
